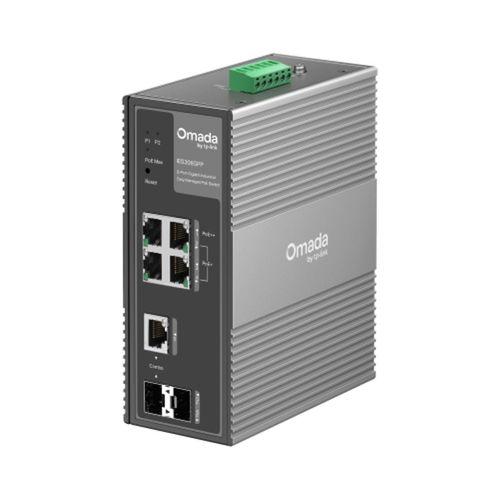

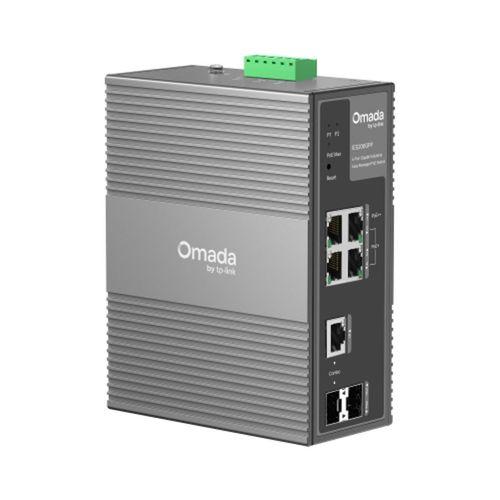

Omada IES206GPP Industrial, 6 Port Gigabit, 1Port Poe++, 3 Port Poe+, 1 Port Gigabit Combo SFP, 120W, Yönetilebilir, Endüstriyel Switch
Omada IES206GPP Industrial, 6 Port Gigabit, 1Port Poe++, 3 Port Poe+, 1 Port Gigabit Combo SFP, 120W, Yönetilebilir, Endüstriyel Switch
8,297.86 TL
Satıcı: OemPlay
Stok (10)
%100
OemPlay
Git
Ücretsiz Kargo
Omada IES206GPP Industrial, 6 Port Gigabit, 1Port Poe++, 3 Port Poe+, 1 Port Gigabit Combo SFP, 120W, Yönetilebilir, Endüstriyel Switch
Omada IES206GPP Industrial, 6 Port Gigabit, 1Port Poe++, 3 Port Poe+, 1 Port Gigabit Combo SFP, 120W, Yönetilebilir, Endüstriyel Switch
8,297.86 TL
Satıcı: OemPlay
Kargo Fırsatı
500.00 TL ve Üzeri Siparişlere
Ücretsiz Kargo Fırsatı
Ücretsiz Kargo Fırsatı
Listeme Ekle
Kampanyalar
Stok (10)
%100
OemPlay Omada IES206GPP Industrial, 6 Port Gigabit, 1Port Poe++, 3 Port Poe+, 1 Port Gigabit Combo SFP, 120W, Yönetilebilir, Endüstriyel Switch
| • 1× 10/100/1000 Mbps PoE++ RJ45 Ports • 3× 10/100/1000 Mbps PoE+ RJ45 Ports • 1× Gigabit SFP/RJ45 Combo Slot • 1× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX |
| Fanless |
| • DIN-rail mounting • Wall mounting |
| 12-57V 1+1 Redundant DC Power Input |
| • Standard: 802.3af/at/bt compliant • PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port • PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port • PoE Budget: - 60W (Input: 12V / 7.0A - 21V / 3.5A)) - 120W (Input: 21V / 6.5A - 57V / 2.3A) • Fast PoE • Perpetual PoE |
| 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm) |
| • ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports |
| 12 Gbps |
| 8.93 Mpps |
| 8K |
| 4 Mbit |
| 15 KB |
| • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control |
| • Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w) |
| • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Store-And-Forward |
| Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Yes. Requires the use of Omada Cloud-Based Controller |
| • Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| FCC, CE, RoHS |
| • IES206GPP • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide |
| • Operating Temperature: -40℃~75℃ (-40℉~167℉) • Storage Temperature: -40℃~85℃ (-40℉~185℉) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing |
