Standartlar ve ProtokollerArabirimAğ MedyasıFan SayısıHarici Güç KaynağıLEDPaket Yönlendirme HızıPoE Portları (RJ45)Boyutlar ( W X D X H )Maks. Güç TüketimiMax. Heat Dissipation

IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

• 10*10/100 Mbps RJ45 Ports with 8 PoE+ Ports (Port 1 to Port 8)
• AUTO Negotiation/AUTO MDI/MDIX

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX: UTP category 5 or above cable (maximum 100m)

Fanless

External Power Adapter (Power Input: 220~240V, 50/60Hz (NV), Output: 53.5 VDC / 1.92 A)

Power, Link/Act, PoE Status

1.488 Mpps

Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
Power Supply: 96 W

6.7×3.9×1.1 in (171×98×27 mm)

99.6 W

338.64 BTU/h

PERFORMANS

Anahtarlama KapasitesiPaket Buffer BelleğiAdvanced FeaturesJumbo Frame

2 Gbps

768 KB

• Extend Mode (Ports 1-4/1-8)
• Isolation Mode (Ports 1-8)
• PoE Auto Recovery (Ports 1-8)

2 KB

YAZILIM ÖZELLİKLERİ

MAC Adres Tablosuİletim Metodu

Store-And-Forward

DİĞERLERİ

Paket İçeriğiSertifikalarOrtam

Switch, Power Adapter, Rubber Feet, Installation Guide

CE, RoHS

• Operating Temperature: 0°C to 40 °C (32 °F to 104°F )
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158°F )
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing

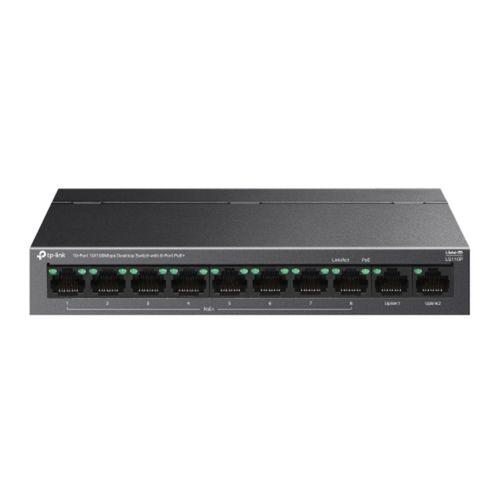

TP-LINK LS110P, Green Tech, 10 Port, MeggaBit, 8 Port PoE+ 96W, Metal Kasa, Yönetilemez, Masaüstü Switch
