10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Fanless

External Power Adapter(Output: 48VDC / 1.25A)

Maximum (PoE on): 65.2W (220V/50Hz)
Maximum (PoE off): 5.2W (220V/50Hz)

Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 55W

PERFORMANSAnahtarlama KapasitesiPaket Yönlendirme HızıMAC Adres TablosuPaket Buffer BelleğiJumbo Frame

16Gbps

11.9Mpps

1.5Mb

15KB

YAZILIM ÖZELLİKLERİQuality of ServiceL2 ÖzellikleriVLANYönetimİletim Metodu

Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Web-based GUI
Easy Smart Configuration Utility

Store-And-Forward

DİĞERLERİSertifikaPaket İçeriğiSistem GereksinimleriOrtam

FCC, CE, RoHS

TL-SG108PE
Power Adapter
Installation Guide
Resource CD
Rubber Feet

Microsoft® Windows® for running Utility

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing

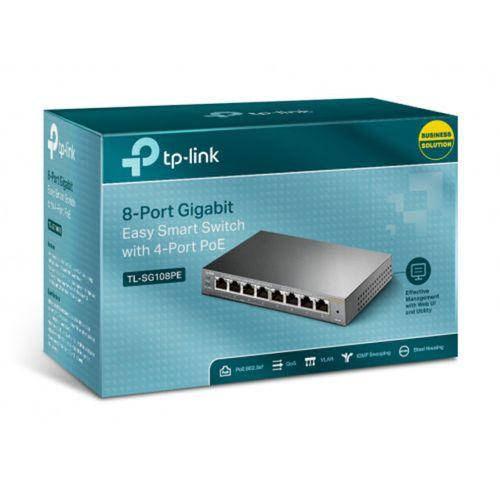

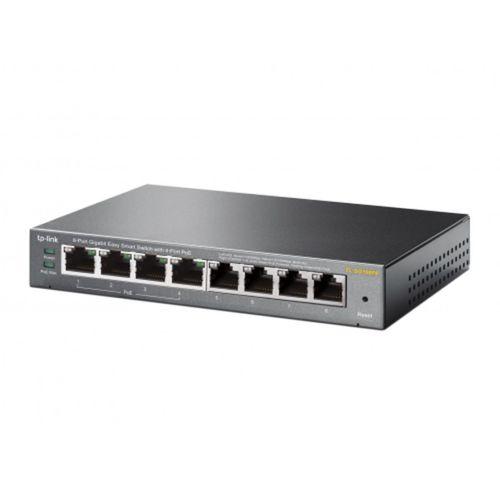

TP-LINK TL-SG108PE, 8 Port, GigaBit, 4 Port PoE 64W, Easy Smart, Yönetilebilir, Metal Kasa, Masaüstü Switch
